What flow rate does the HUR 3X170FL-XXP handle?

The HUR 3X170FL-XXP is rated for approximately 315 GPM. The Hurricane Swing Bolt line offers six sizes from 105 GPM up to 1,680 GPM, with the design rated up to 2,400 GPM, so you can match flow to your system without oversizing.

What pressure and temperature can Hurricane Swing Bolt housings handle?

Standard XP/FL models are rated to 150 PSI and XXP models are rated up to 235 PSI (16 bar). With Harmsco HTM high-temperature cartridges, the housings operate up to 250F (121C). All use an O-ring seal and Swing Bolt closure, built to ASME design standards.

What makes the Hurricane different from a standard filter housing?

Its patented up-flow design spins dense solids out in a built-in cyclone separator before they reach the cartridge - extending filter life, increasing dirt-holding capacity, and cutting maintenance and operating cost. Housings are NSF/ANSI/CAN 61 listed and made from 304/304L, 316/316L, or Duplex stainless steel.

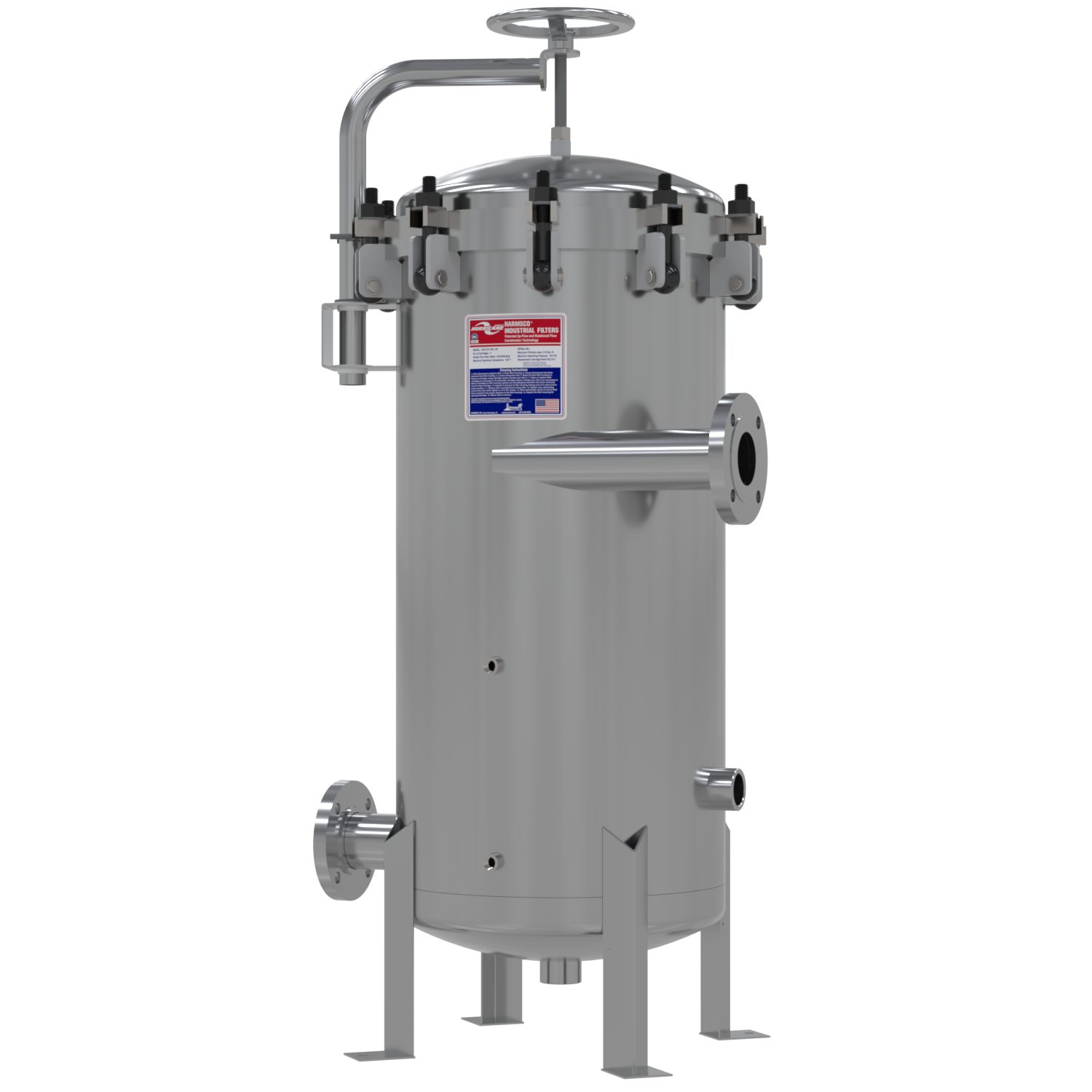

HUR 3X170FL-XXP Hurricane Stainless Steel Filter Housing

Name: HUR 3X170FL-XXP
Brand: Harmsco
SKU: HUR 3X170FL-XXP

HUR 3X170FL-XXP

HUR

High Efficient Housings

PRODUCT DETAILS

Pressure Rating: 235 PSI
Max Flow Rate: 450 GPM
I/O: 3″ Flange
No. of Cartridges: 3
Cartridge Length: 30 3/4″
Service Height: 98-1/2″
Footprint: 9.6 Sq. Ft
Built to ASME Standards, no U-Stamp
Material of Construction: 304L or 316L Stainless Steel
Finish: Electropolished

HUR 3X170FL-XXP Stainless Steel Filter Housing

The Harmsco Hurricane Swing Bolt HUR 3X170FL-XXP is a high-efficiency stainless steel filter housing engineered for demanding industrial, commercial, and municipal water filtration. It combines three technologies in one compact vessel — cyclonic separation, cartridge filtration, and Harmsco’s patented up-flow design — so dense solids are spun out before they ever reach the cartridge. The result is longer filter life, greater dirt-holding capacity, and lower maintenance and operating cost than a conventional filter housing.

Performance and construction

The HUR 3X170FL-XXP is rated for flows up to 450 GPM at 235 PSI and is part of the six-size Hurricane Swing Bolt line that scales to 2,400 GPM. Every Hurricane stainless steel filter housing is NSF/ANSI/CAN Standard 61 certified for drinking water, built to ASME design standards, and offered in 304/304L, 316/316L, or Duplex stainless steel with an electro-polished finish. Flanged inlet and outlet connections, stainless steel standpipes, an O-ring housing seal, and the tool-light Swing Bolt closure keep cartridge changes fast and clean.

Cartridge options

Because the Hurricane housing accepts the industry’s largest selection of NSF-certified cartridges — Polyester-Plus, Poly-Pleat, All-Poly, Carbon Block, SureSafe Antimicrobial, High-Temperature, Harmsco-Free, and EZ Clean — you can match micron rating and media precisely to your water chemistry. With HTM high-temperature cartridges, the housing operates up to 250°F (121°C).

Applications

The HUR 3X170FL-XXP stainless steel filter housing is used across drinking water, cooling tower filtration, reverse osmosis pre- and post-filtration, ground water remediation, data center cooling, food and beverage, bottling, and industrial wastewater treatment. Harmsco has manufactured filtration products in the USA, in Riviera Beach, Florida, since 1958.
