Swingbolt Hurricane Housings SB
- Lower Operating Cost
- Three technologies, cyclonic separation, cartridge filtration, patented up flow design
- 304L or 316L Stainless Steel options available
- Flow rates up to 2400 GPM
- Pressure rating to 235 psi with XXP series
- Built to ASME Standards, no U-Stamp
- NSF/ANSI/CAN standard 61 certified

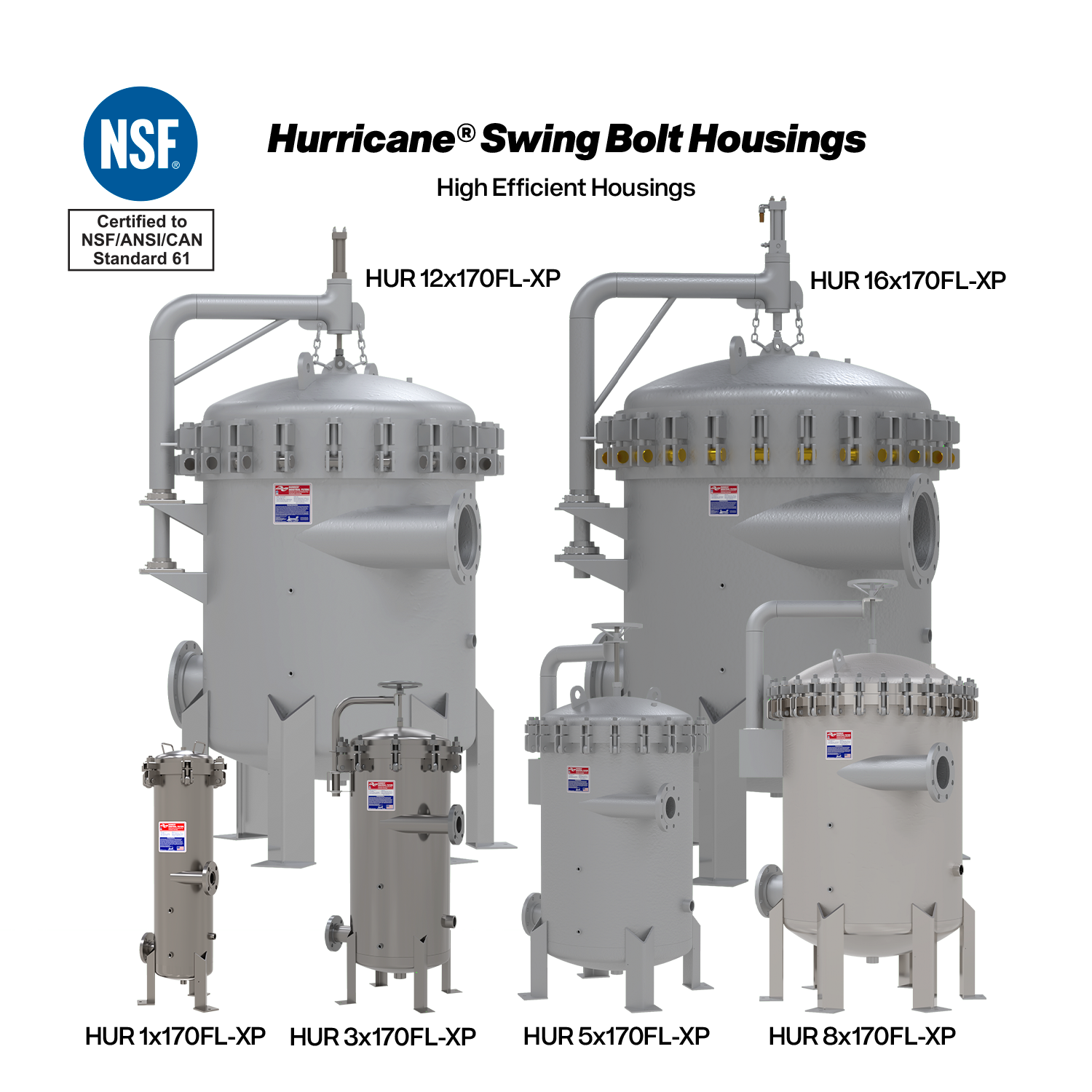

Swing Bolt Hurricane Stainless Steel Filter Housings
Harmsco’s Hurricane Swing Bolt line is the flagship family of stainless steel filter housings, combining three technologies in one vessel: cyclonic separation, cartridge filtration, and the patented up-flow design. Dense solids are spun out before they reach the cartridges, extending filter life, increasing dirt-holding capacity, and lowering operating cost across six sizes covering flows up to 2,400 GPM.
Every Hurricane Swing Bolt stainless steel filter housing is NSF/ANSI/CAN Standard 61 certified, built to ASME design standards (no U-stamp) from 304L or 316L stainless steel, and pressure rated to 150 PSI standard or 235 PSI in the XXP series. The tool-light Swing Bolt closure keeps cartridge changes fast for plant operators.
The line accepts the industry’s largest selection of NSF-certified cartridges — Polyester-Plus, Poly-Pleat, All-Poly, Carbon Block, SureSafe Antimicrobial, and High-Temperature — with HTM cartridges enabling service up to 250°F.
Hurricane Swing Bolt housings serve drinking water, cooling towers, reverse osmosis pre-filtration, ground water remediation, data centers, food and beverage, and industrial wastewater. Six sizes let system designers match capacity precisely, while shared cartridge platforms keep spare-parts inventory simple across installations. Harmsco has manufactured filtration products in the USA, in Riviera Beach, Florida, since 1958.
