HMC-7 Multi Cartridge Housing
- Pressure Rating: 150 PSI
- Max Flow Rate: 200 GPM
- I/O: 2" FNPT
- No. of Cartridges: 7
- Cartridge Length(s): 40"
- Service Height: 96-1/4"
- Footprint: 1.3 Sq. Ft
- Material of Construction: 304 or 316 Stainless Steel
- Finish: Bead Blast
- Built to ASME Standard-No U-Stamp
Compatible Cartridges

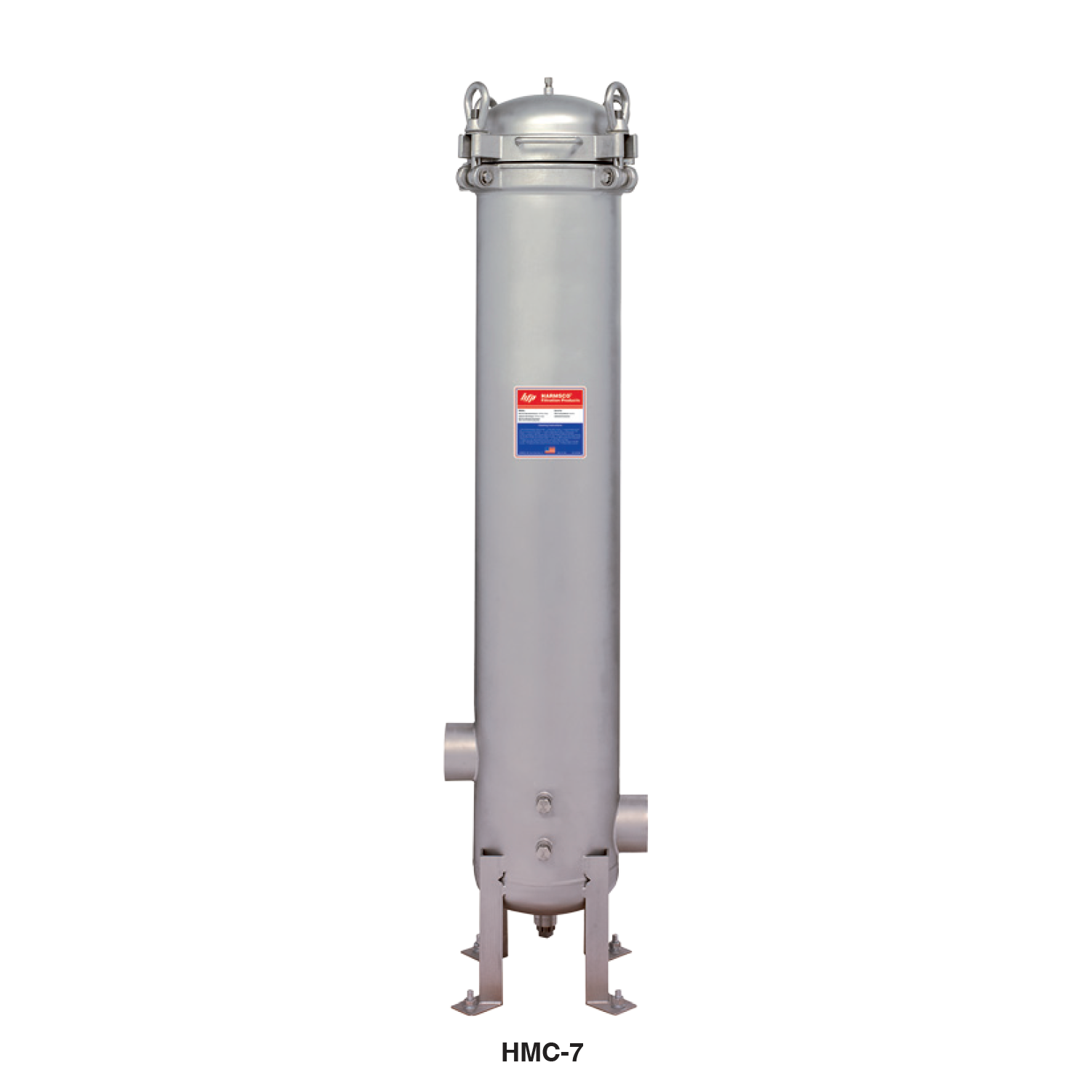

HMC-7 Multi Cartridge Filter Housing
The Harmsco HMC-7 is a stainless steel multi cartridge filter housing designed around 40″ nominal-length cartridges — 7 of them in a single slim vessel. Long cartridges mean more media per cartridge change, and the Swing Bolt closure keeps those changes fast. Built to ASME design standards (no U-stamp), the HMC line brings serious flow capacity to a remarkably small footprint.
The HMC-7 handles flows up to 200 GPM at 150 PSI through 2″ FNPT connections, holding 7 × 40″ cartridges at 96-1/4″ service height in a 1.3 Sq. Ft footprint. It is built from 304 or 316 stainless steel with a bead-blast finish.
The HMC-7 multi cartridge filter housing accepts 40″ nominal cartridges from Harmsco’s NSF-certified range — Polyester-Plus, Poly-Pleat, All-Poly, Carbon, and High-Temperature media — so you can match micron rating and media to the duty while minimizing cartridge count.
HMC housings serve industrial and municipal process water, cooling loops, reverse osmosis pre-filtration, and high-flow polishing where floor space is tight and service time matters. Compared with banks of short-cartridge vessels, one HMC housing cuts cartridge count dramatically: fewer seals to inspect, fewer changes to schedule, and less waste to dispose of. Harmsco has manufactured filtration products in the USA, in Riviera Beach, Florida, since 1958.
