HIF 200FL Cluster COAT Fusion Bonded Epoxy Coated Housing
- Upflow Filtration
- Pressure Rating: 150 PSI
- Max Flow Rate 800 GPM
- I/O 4″ Flange
- No. of Cartridges: 25
- Cartridge Length(s): 39″
- Service Height: 93″
- Footprint: 4.7 Sq. Ft
- Material of Construction: 304 or 316 Stainless Steel
- 3M™ Scotchkote™ Epoxy Coated Finish
- All Housings and Cartridges are BABA Compliant
Compatible Cartridges

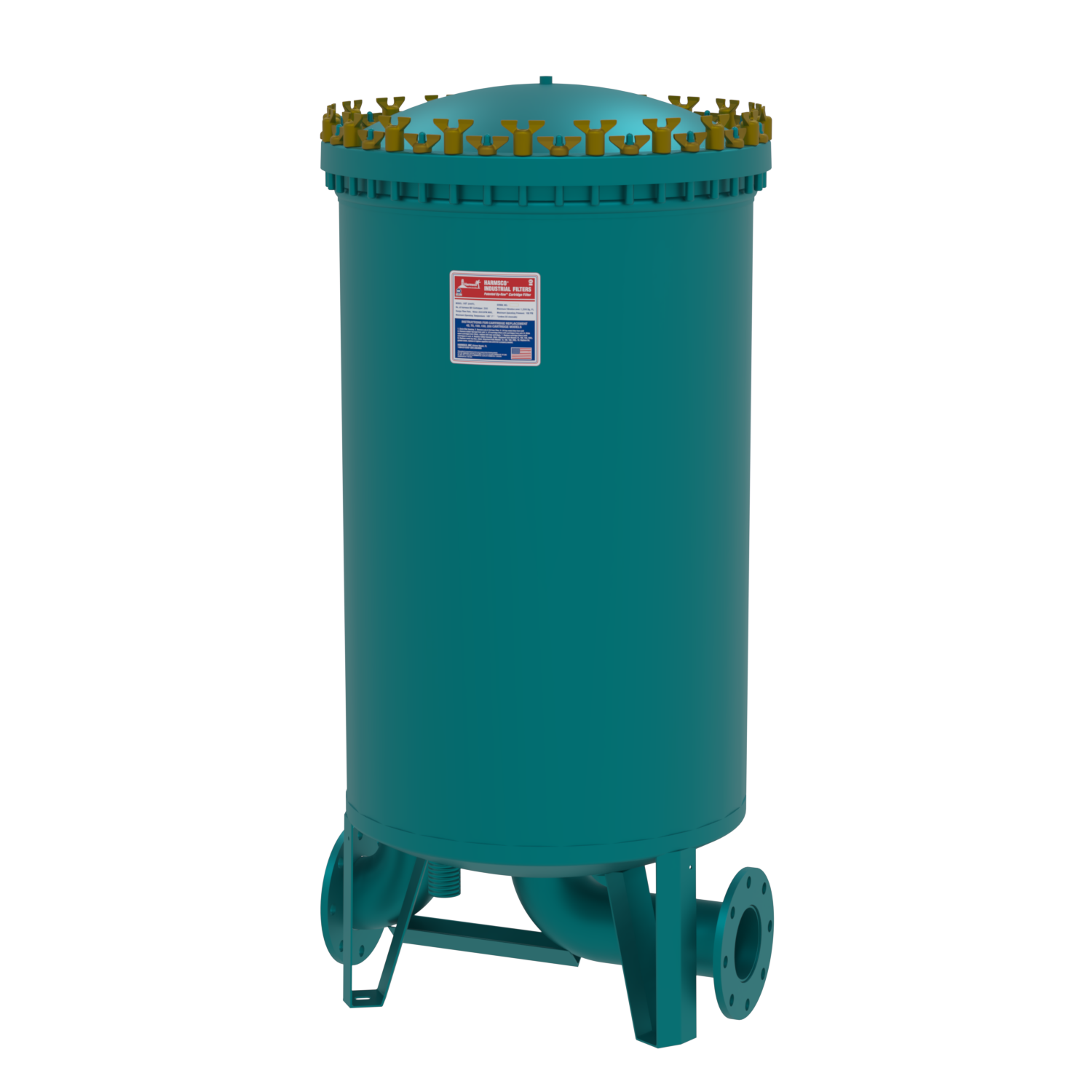

HIF 200FL Cluster COAT Epoxy Coated Filter Housing
The Harmsco HIF 200FL Cluster COAT is a cluster up-flow epoxy coated filter housing finished in tough 3M™ Scotchkote™ epoxy over a stainless steel vessel — extra armor for corrosive or coastal duty. Water enters low and rises through the cartridge cluster, releasing entrained air and loading every cartridge evenly, and like all HIF equipment the housing and its cartridges are BABA compliant (Build America, Buy America) for federally funded projects.
The HIF 200FL Cluster COAT handles flows up to 800 GPM at 150 PSI through 4″ flange connections, holding 25 standard-diameter cartridges. It is fabricated from 304 or 316 stainless steel and finished with the 3M Scotchkote epoxy coating, with high-temperature configurations available.
This epoxy coated filter housing uses standard 2-1/2″ and 2-3/4″ diameter cartridges — the most widely available format in the industry — from Harmsco’s NSF-certified, BABA-compliant range, with no proprietary lock-in.
HIF COAT housings serve industrial process water, coastal and corrosive-atmosphere installations, municipal treatment, and federally funded infrastructure where BABA compliance is required. The epoxy finish adds protection where salt air or chemical exposure would challenge bare metal. Harmsco has manufactured filtration products in the USA, in Riviera Beach, Florida, since 1958.
