BCB-1-2-STD Band Clamps Bag Housing
- Pressure Rating: 150 PSI
- Max Flow Rate: 100 GPM
- I/O: 2" FNPT
- No. of Bags: 1
- Service Height: 37-1/4"
- Footprint: 1.2 Sq. Ft
- Material of Construction: 304 or 316 Stainless Steel
- Finish: Electropolished
Compatible Bags

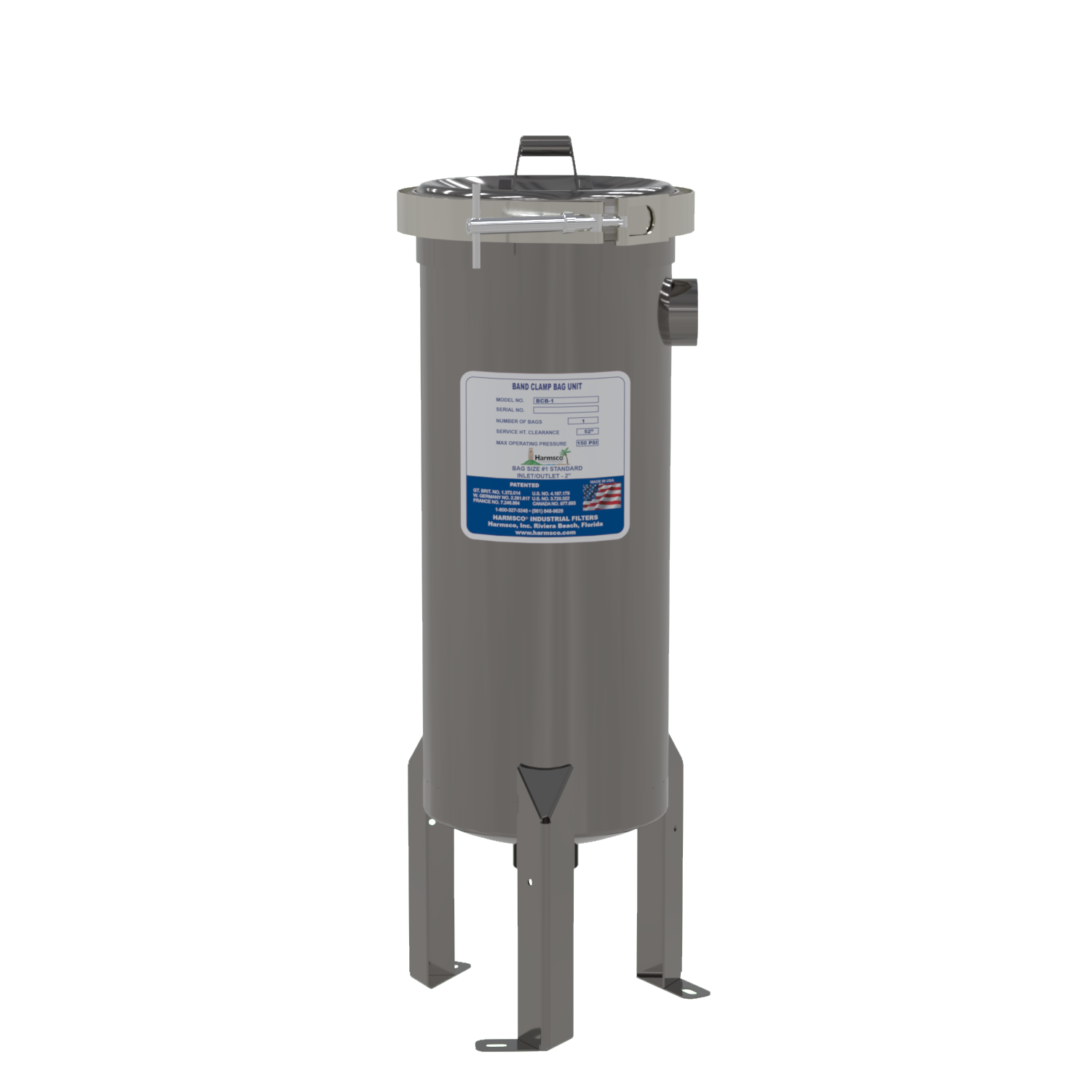

BCB-1-2-STD Band Clamp Bag Filter Housing
The Harmsco BCB-1-2-STD is a stainless steel band clamp bag filter housing holding a standard #1 filter bag. Filter bags hold far more dirt than comparable cartridges, and the tool-free band-clamp closure makes bag changes fast and clean — an economical combination wherever sediment loads are heavy or variable. A fusion-bonded epoxy coated version is also available.
The BCB-1-2-STD handles flows up to 100 GPM at 150 PSI through 2″ FNPT connections, standing 37-1/4″ in a compact 1.2 Sq. Ft footprint. It is built from 304 or 316 stainless steel with an electro-polished finish.
The BCB-1-2-STD band clamp bag filter housing accepts standard and extended-length filter bags in a wide range of micron ratings and media, so you can match filtration to your solids loading — from coarse pre-filtration to fine polishing — at a low cost per pound of dirt removed.
BCB housings serve industrial process water, wastewater, cooling loops, and pre-filtration ahead of membranes and finer cartridge stages — anywhere high dirt-holding capacity and quick service matter. Harmsco has manufactured filtration products in the USA, in Riviera Beach, Florida, since 1958.
