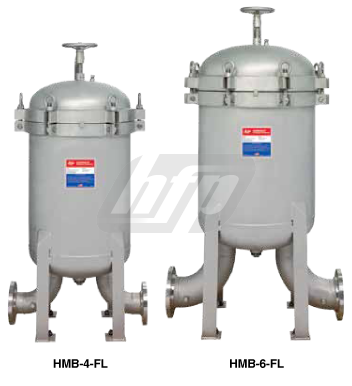

HMB - Harmsco® Multi Bag Filter Housings

HMB - Harmsco® Multi Bag Housings

Municipal / Industrial

Designed with Snap Fit “V” Ring Bag Seal to prevent by-pass.


HMB Series Bag Housings are designed for high flow, high contaminant removal. Manufactured to ASME design standards for durability and long equipment life.

Details

Features

  • 304 stainless steel construction, standard
  • 304 stainless steel perforated baskets, standard
  • 150 PSI (10.3 bar) pressure rating
  • Built to ASME design standards
  • Bead blast finish, standard
  • Designed to accept standard #2 Snap Fit “V” Ring or steel ring bags
  • Two gauge ports - inlet and outlet sides
  • Assisted davit arm with eye-nut closure

Options:
ASME Code U-stamp
316L stainless steel construction

Applications
  • Paint
  • Process Water
  • Plating Solutions
  • Coatings
  • Industrial Waste Water Treatment
  • Lubricants
  • Solvents
  • Hydraulic Fluids
  • Cutting Fluids
  • Ground Water Remediation

Note: This publication is to be used as a guide. The data within has been obtained from many sources and is considered to be accurate. Harmsco does not assume liability for the accuracy and/or completeness of this data. Changes to the data can be made without notification. Temperature, Pressure, Flow Rates, Differential Pressures, Chemical Combinations and other unknown factors can affect performance in unknown ways. Limited Warranty: Harmsco warrants their products to be free of material and workmanship defects. Determination of suitability of Harmsco products for uses and applications contemplated by Buyer shall be the sole responsibility of Buyer. The end user/installer/buyer shall be liable for the product’s performance and suitability regarding their specific intended applications. End users should perform their own tests to determine suitability for each application.
